Lab 1 - ECE 421L

Authored by Isaac Robinson,

robins82@unlv.nevada.edu

September 7th, 2016



This lab focuses on completing "Tutorial 1 - Layout and simulation of a resistive voltage divider" from the Cadence Design System Tutorials on CMOSedu.com.

PRELAB:

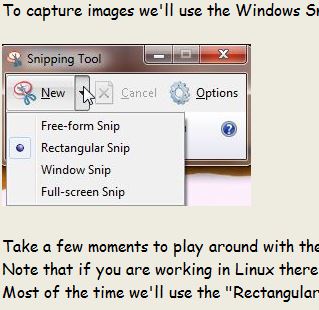

The following image is an example of an snippit.


The following is an example of a table generated using KompoZer.

Thequickbrownfox
jumpsoverthelazy
dog.8338

Note: return links are at the bottom of this page.

--------------------------------------------------------------------------

--------------------------------------------------------------------------

LAB REPORT:

Following the Cadence Tutorial 1 on CMOSedu.com up to image 25 the following ciruit layout is created:


This circuit is a simple voltage divider that has a 1 DC Volt input and two identical resistors of 1k ohm resistance.

The simulation of this circuit is ran for 1 second, and the voltage values are read at wires labeled "in" and "out".

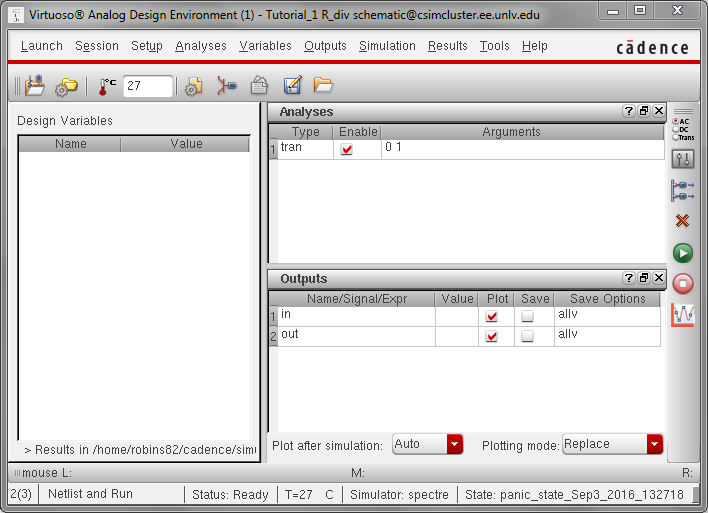

The setup for this is seen in the image below:

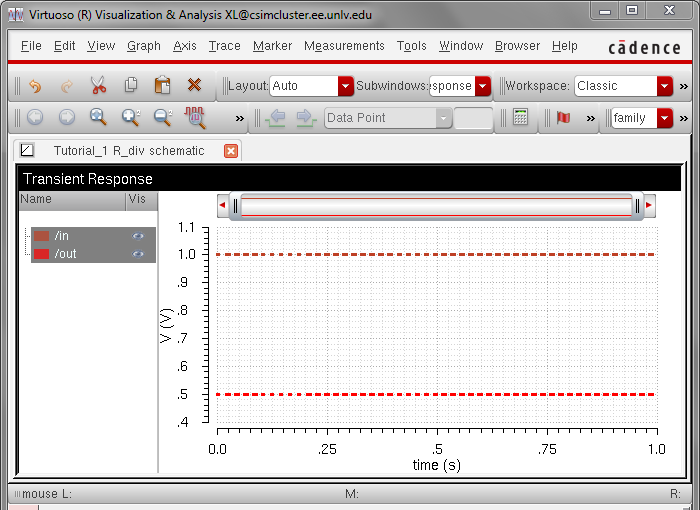

And the following is the actual simulation results:


As can be seen in the image, the simple voltage divider drops the voltage to half the input voltage. This is expected when resistors in a simple two series resistor voltage divider have the same value in resistance.

BACKING UP:

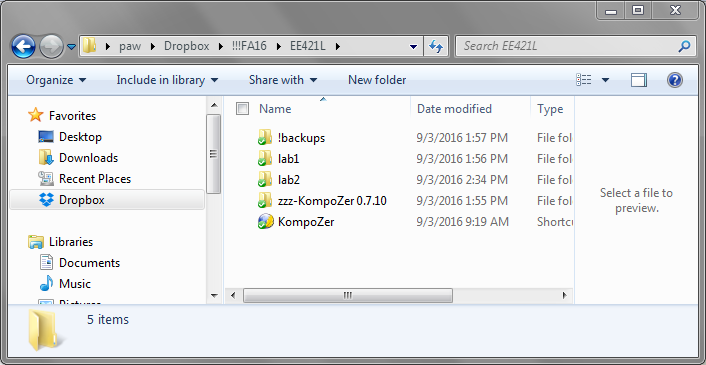

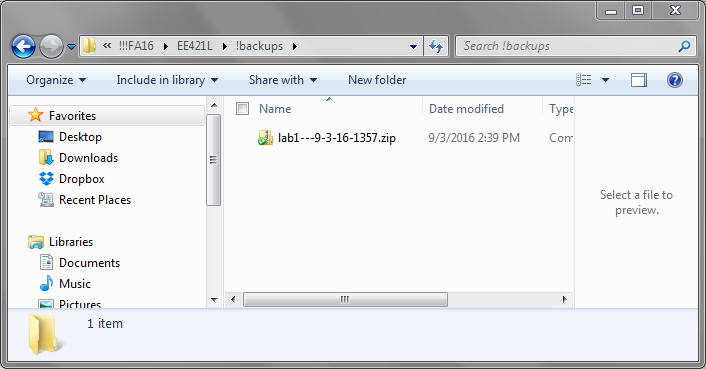

To perform regular backups, dropbox will be used.


It will also hold the most recent working copy of my labs to allow them to be modified on any computer capiable of using dropbox (client or website).
