TDC Board
Daniel’s PCB Designs
Designed for Sachin Namboodiri



About

·       This PCB was designed to test the TDC chip designed by Sachin Namboodiri. The chip was created in the AMS SiGe 0.35um process and contains the following circuits: two TDC architectures, an averaging circuit, an operational amplifier, a transimpedance amplifier, a 4-bit flash ADC, an oscillator, and a comparator. More information about the chip can be found on Sachin’s TDC page.

·       When the PCBs were received, Daniel soldered and populated the board for Sachin.



TDC Board Design (Shown in Eagle)

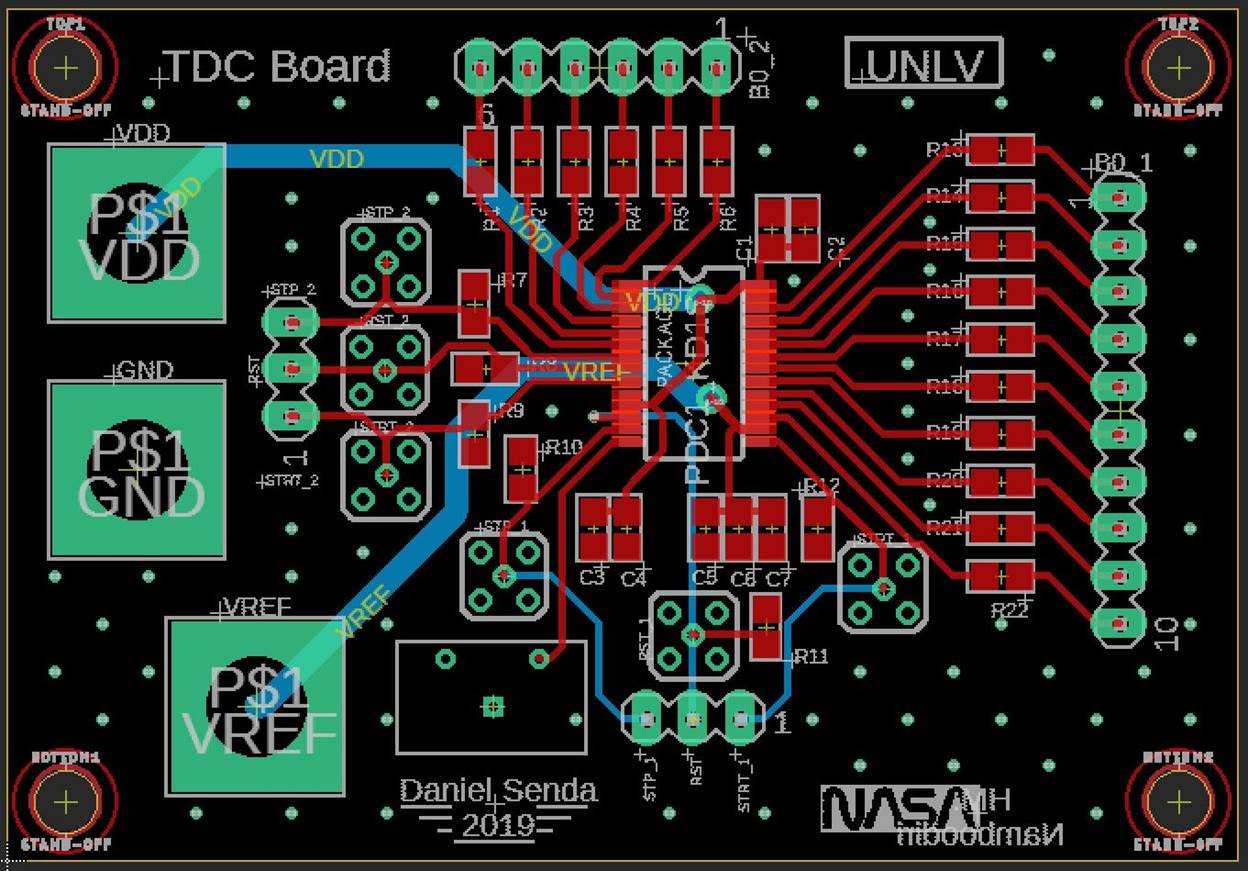

TDC board design with hidden GND planes for better trace visibility.
A circuit board

Description automatically generated

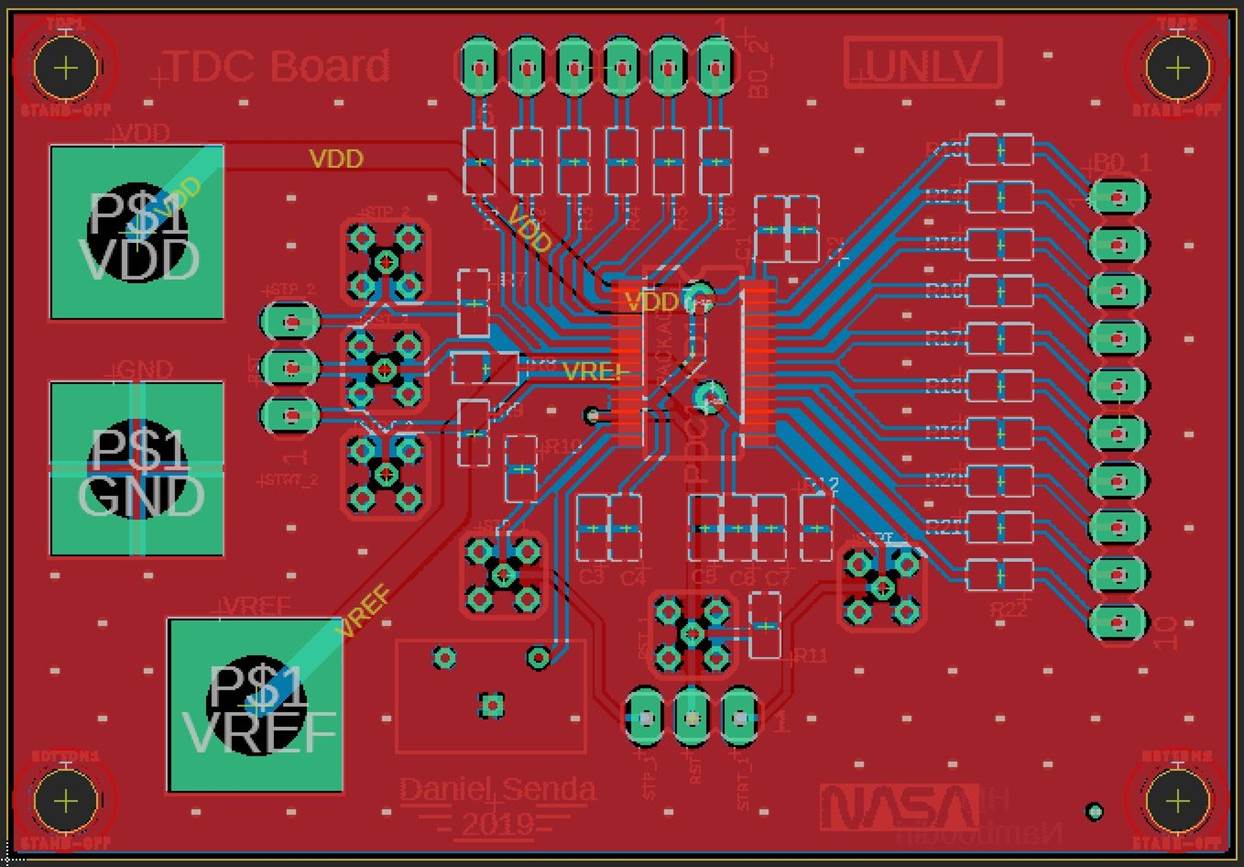

TDC board design with visible GND planes.
A circuit board

Description automatically generated

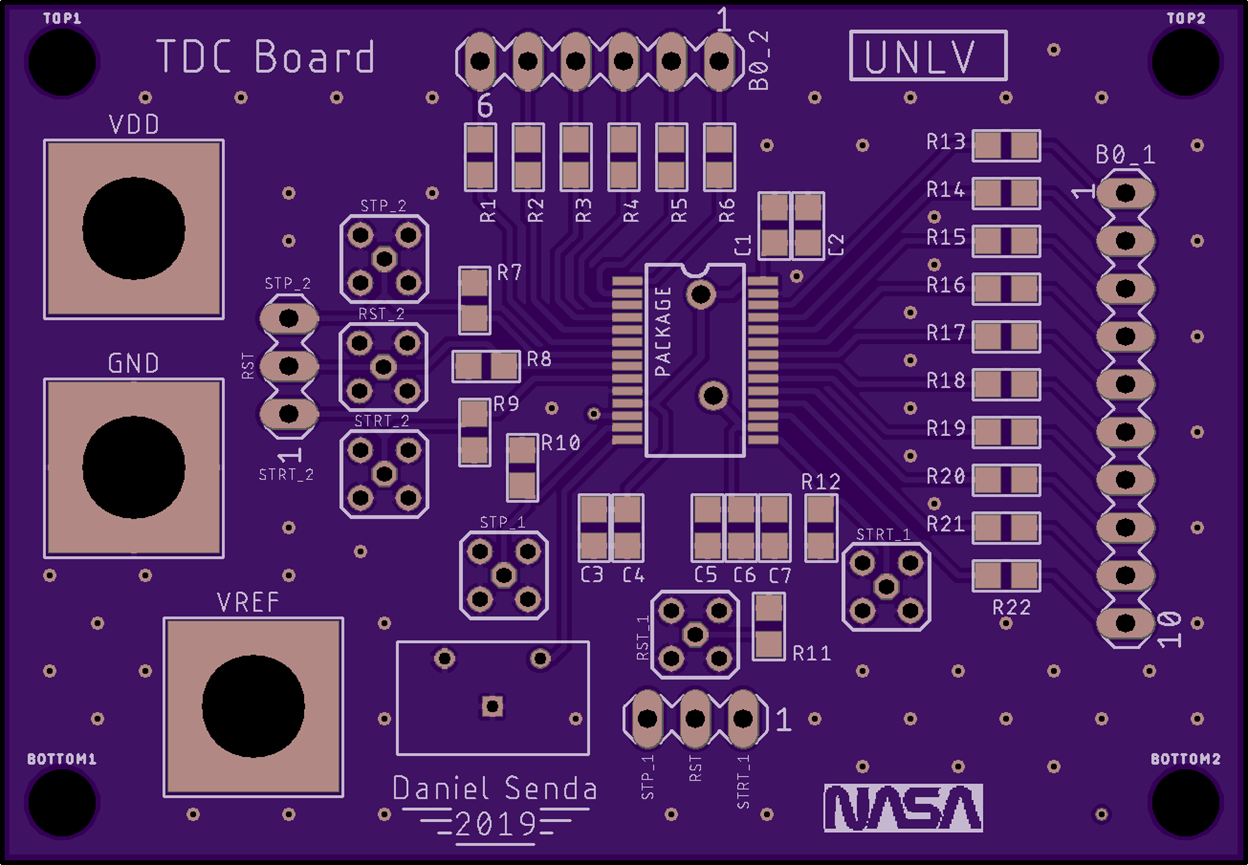

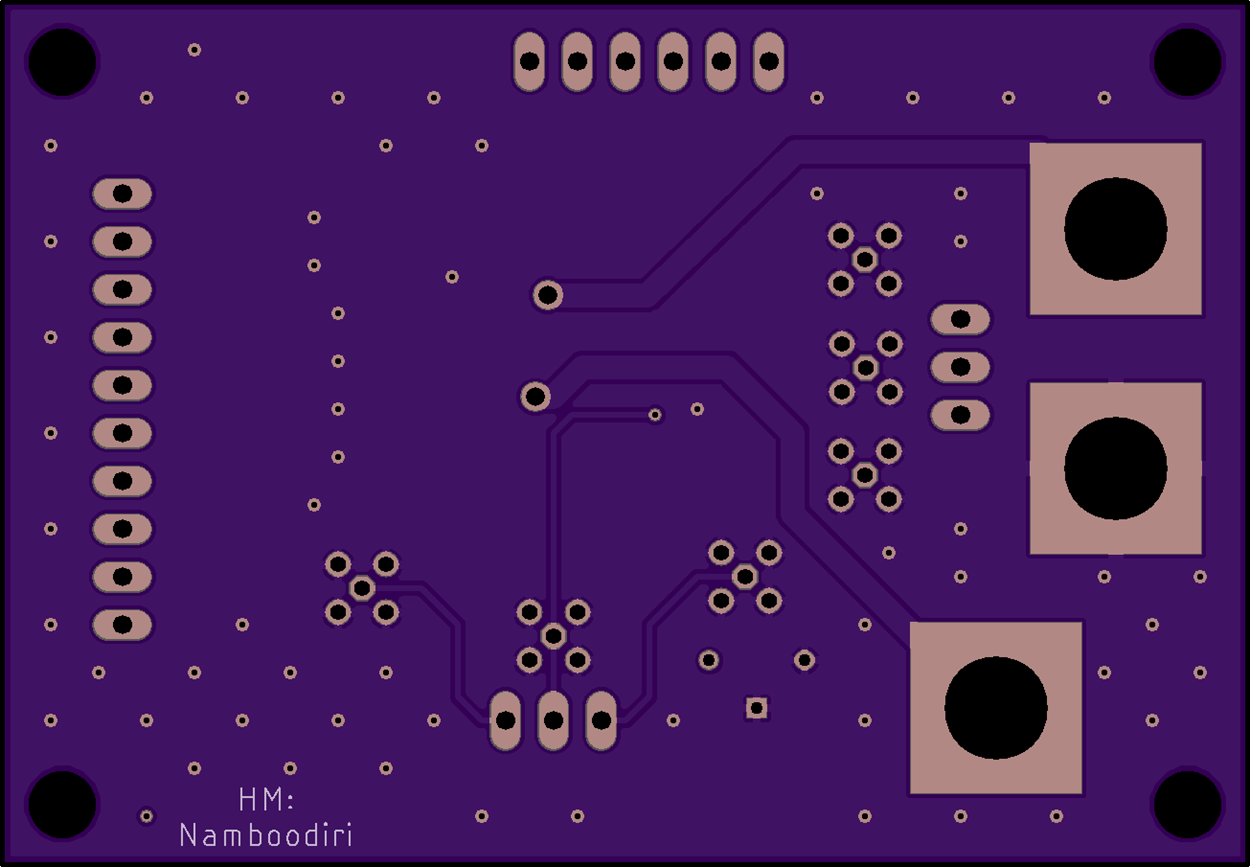

Rendered PCB Images

A circuit board

Description automatically generated

A close up of electronics

Description automatically generated
