Wire Bond Plans
Technician Craft
Produced by Daniel Senda



Page Information

·       This page shows a couple wire bond plans that Daniel has created while working in the Dr. Baker Research Group.

·       Wire bond plans show how to connect the chip to the package and are very useful to follow when wire bonding.

·       The bond plans were made using PowerPoint and Google Slides.

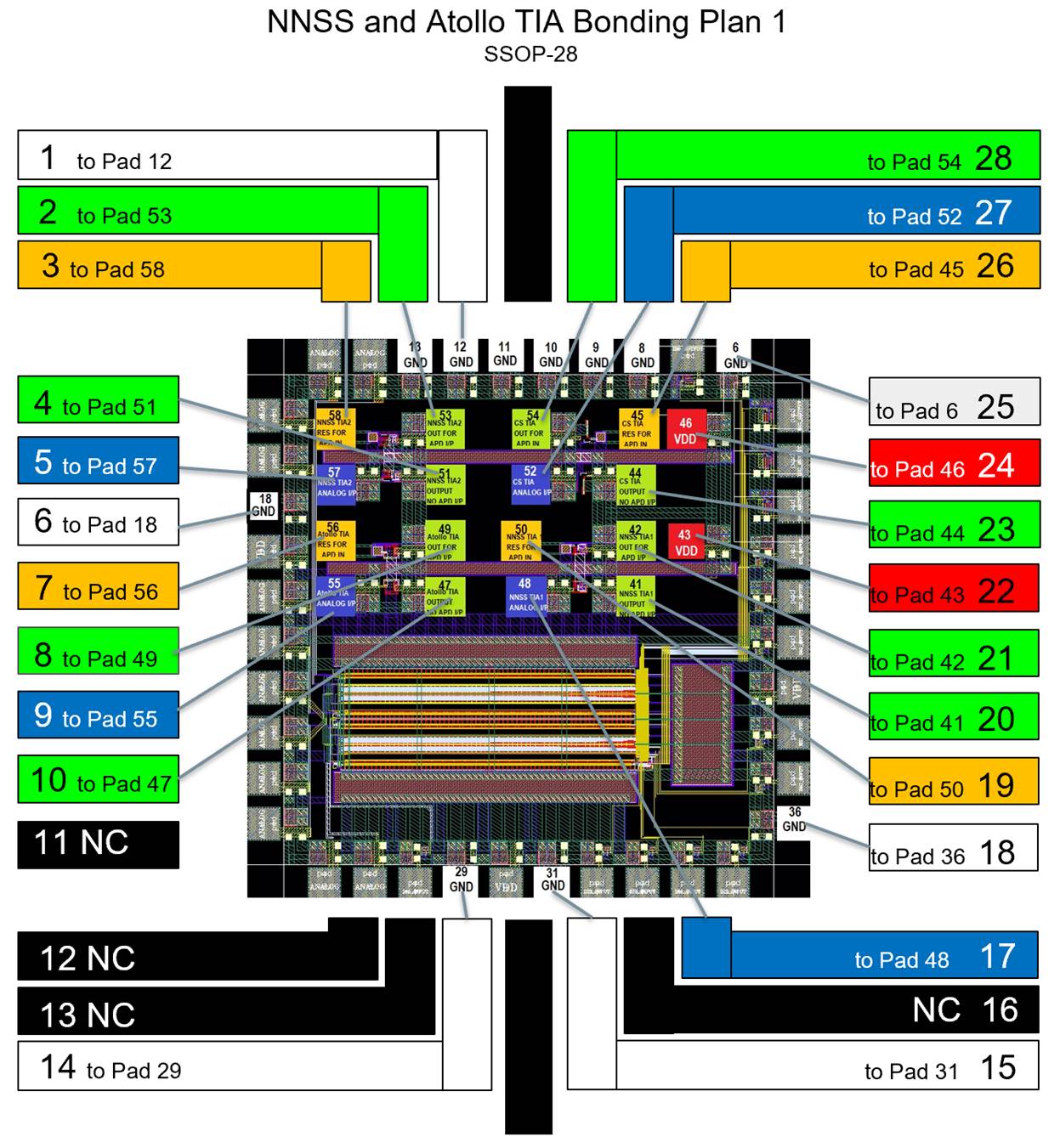

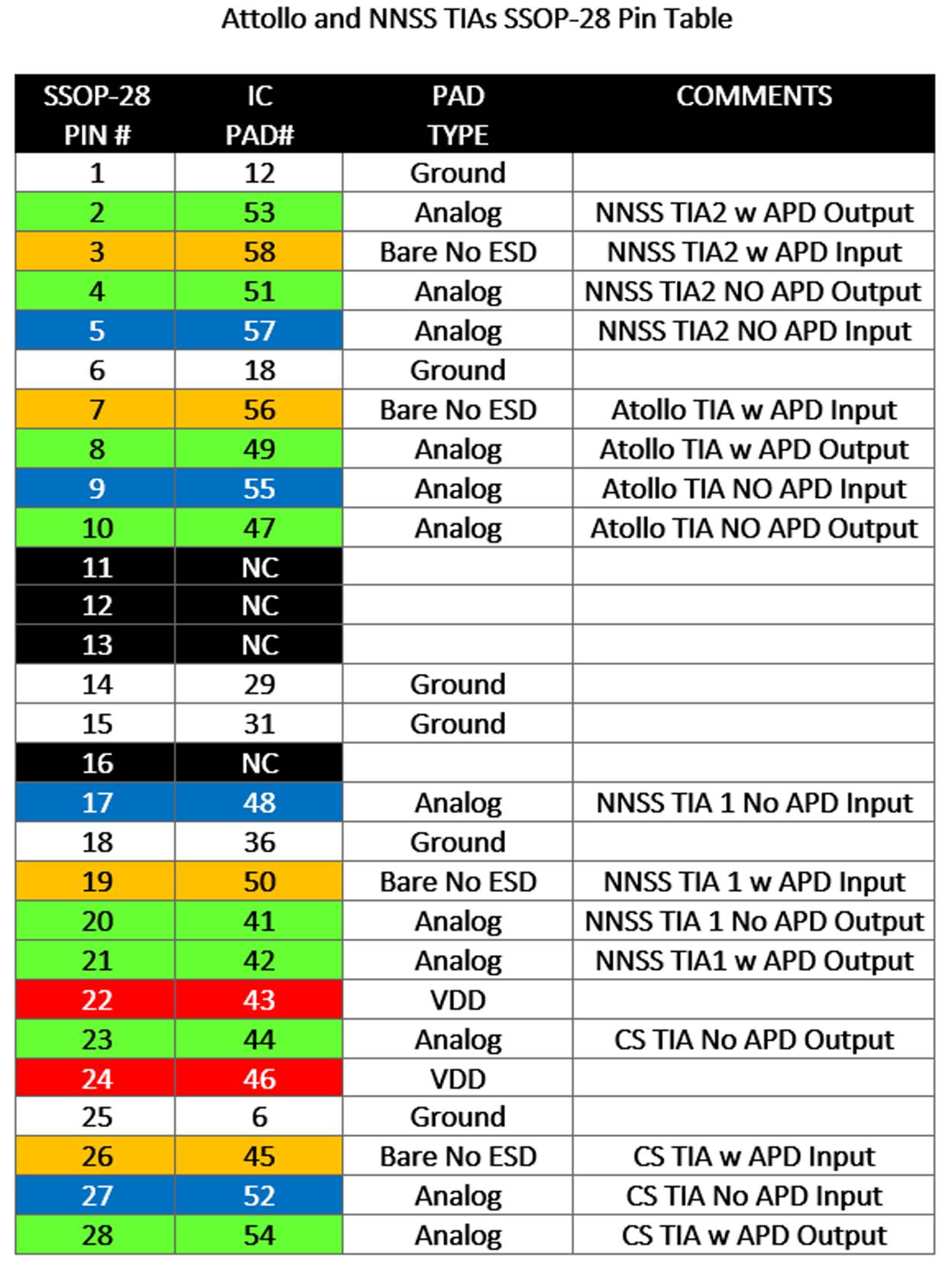

NNSS and Atollo TIA Bond Plan and Chip to Package Pinout (Daniel’s 1st Wire Bond Plan)

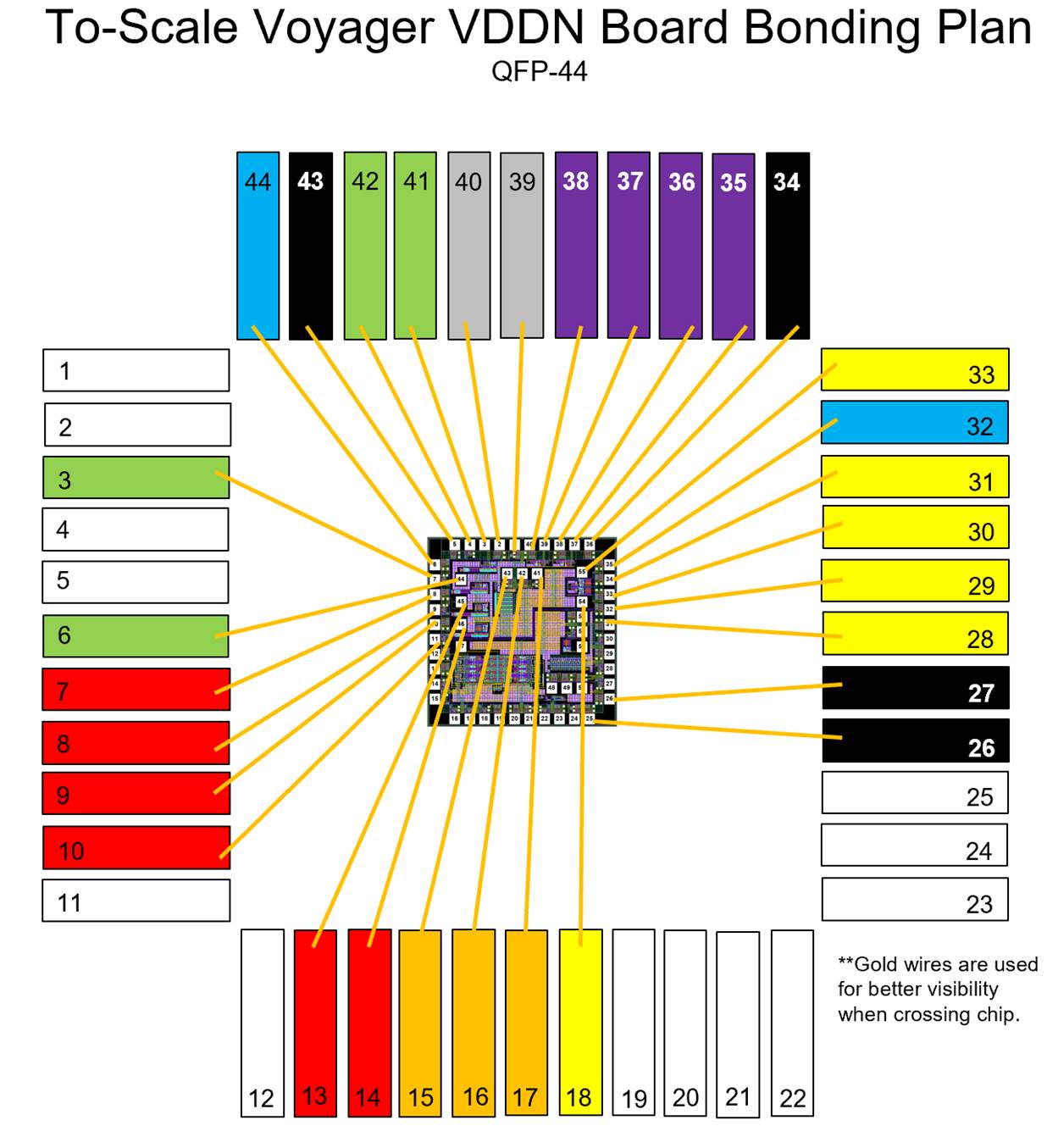

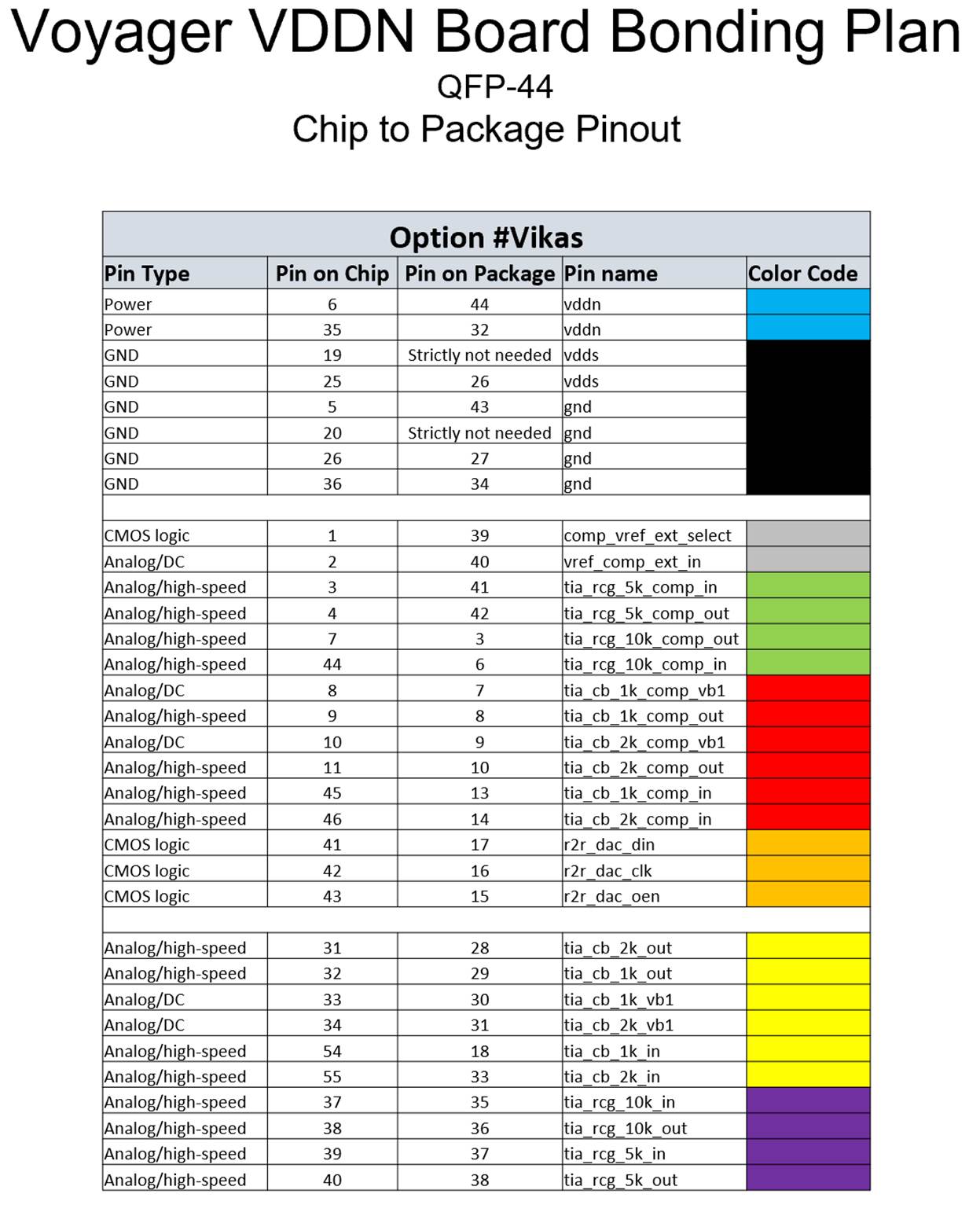

Voyager VDDN Bond Plan and Chip to Package Pinout
