Lab 8 - ECE 421L

Min Long Lan

lanm2@unlv.nevada.edu

12/6/2013


Electric library:      MOSIS_chip2.jelib (experimental results, posted May, 2014)


For lab8, we formed into a team of 3 students to put test structures on a chip that will be

sent out to MOSIS for fabrication. Our team consists of:

        * Jason Silic

        * Edgar Solorio

        * Min Lan



The following components were REQUIRED for the lab:

        *100/2 NMOS

        *100/2 PMOS

        *Inverter made of 100/2 NMOS and  200/2 PMOS

        *61 stage ring oscillator using 10/2 MOSFETS

        *20k n-well resistor

        *20k hi-res poly resistor

        *1k n+ resistor

        *1k p+ resistor

        *Bandgap reference

The following components were MISCELLANOUS for the lab:

        * 4-bit Adder

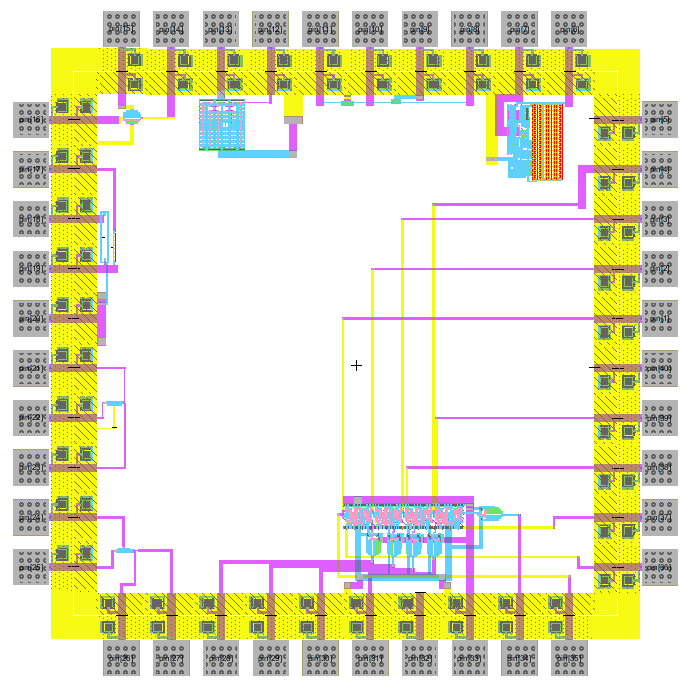

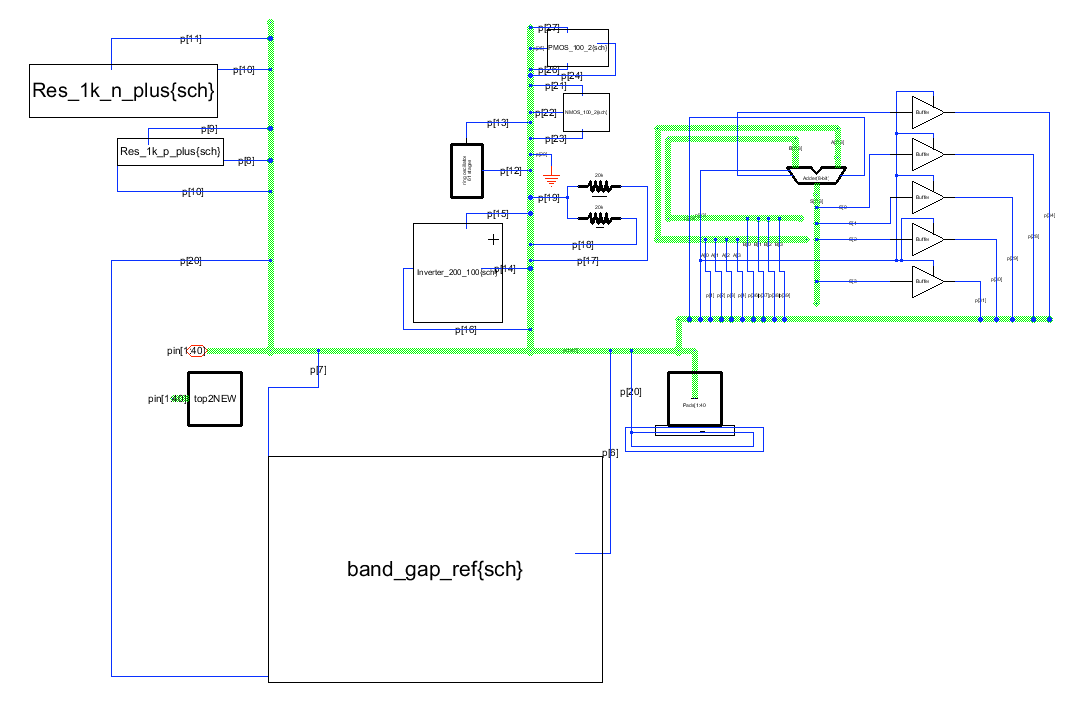

The images below show how the components layout are placed in the chip itself as well as the schematic

cell and proof that they all pass NCC and DRC:













For a better view of the items within this chip, checkout our jelib file located here MOSIS_chip2.jelib

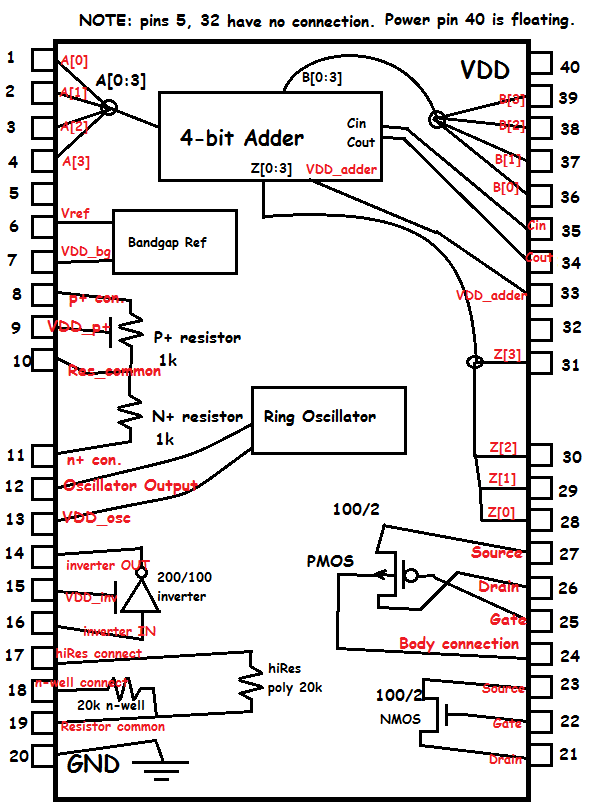

A pin diagram of all the components is given above as reference:



Next we will discuss how to test each of the components on the chip.

NOTE!: Pin 20 on the chip is the dedicated ground (GND) pin for all the components that

will need to connect to ground, each component will have it's own VDD pin.


In order to have the ESD Protection to work properly, your need to connect VDD to Pin 40.


Please only test one component at a time, do not have multiple VDD's connected to the

chip to test for example 3 resistors at a time just so their is no influence on your data results.



100/2 NMOS

    * For this component, their are various tests one can do depending on how far into the

       course the student is. You have access to 3 pins as listed below:

            DN - Drain connection (PIN 21)

            GN  - Gate connection (PIN 22)

            SN - Source connection (PIN 23)

       The body of the NMOS is directly connected to ground within the actual chip



    TEST 1 - First lets connect a 5 volt source across the NMOS drain and source terminals.

        Put 5 volts to the drain pin of the NMOS and put ground to the source pin of the NMOS.

        Now connect the gate pin of the NMOS to ground. Since the gate is connected to ground,

        the NMOS device should be OFF, meaning it is not conducting current. Carefully read

        the current that flows into the drain pin of the NMOS with a multimeter, there should be

        0 amps flowing.



    TEST 2 - Now connect the gate pin of the NMOS to 5 volts and read the current flowing

        through drain. This time you should see a current flowing in the microAmp range. At this

        stage, the NMOS is fully ON.



    TEST 3 - Keep the voltage across the drain and source at 5 volts, you might need a second

        voltage source at this point. Connect the second voltage source to the gate pin of the

        NMOS, make sure to connect the negative terminal to the circuits ground (pin 20!). Now

        slowly vary the voltage source from 0 volts to 5 volts in steps of 100 mV, notice how the

        current through the drain varies. Can you identify the threshold voltage of the NMOS

        by simply sweeping the second voltage source until you go from no current flowing through

        the drain to having current starting to flow?



100/2 PMOS

    * For this component we will use very similar tests as the NMOS component above. For the

       PMOS, you will have access to 4 pins as listed below:

            DP - Drain connection (PIN 26)

            GP - Gate connection (PIN 25)

            SP - Source connection (PIN 27)

            BP - Body Connection (PIN 24)



       Notice that for the PMOS you have access to the body connection, this can allow you to

        test for other parameters such as body effect (when the source and body are not tied to

        the same node). If you are unfamiliar of what to do with this pin, CONNECT THE BODY

        CONNECTION PIN TO VDD (5 volts).



    TEST 1 - First lets connect a 5 volt source across the PMOS source and drain terminals.

        Put 5 volts to the source pin of the PMOS and put ground to the drain pin of the PMOS.

        Now connect the gate pin of the PMOS to ground. Since the gate is connected to ground,

        the PMOS device should be ON, meaning it is conducting current. Carefully read

        the current that flows into the source pin of the PMOS with a multimeter, there should be

        a current in the microamps range flowing.



    TEST 2 - Now connect the gate pin of the PMOS to 5 volts and read the current flowing

        through source. This time you should see no current flowing, the PMOS is OFF.



    TEST 3 - Keep the voltage across the source and drain at 5 volts, you might need a second

        voltage source at this point. Connect the second voltage source to the gate pin of the

        PMOS, make sure to connect the negative terminal to the circuits ground (pin 20!). Now

        slowly vary the voltage source from 5 volts to 0 volts in steps of 100 mV, notice how the

        current through the drain varies. Can you identify the threshold voltage of the PMOS

        by simply sweeping the second voltage source until you go from no current flowing through

        the drain to having current starting to flow?



200/100 INVERTER

    * For this component you will have access to the following pins.

            Out - Output (PIN 14)

            VDD_inv - Input voltage for the inverter (Pin 15)

            In - Input (Pin 16)

        The ground for the inverters are connected within the chip itself, to pin 20.



    Test 1 - Connect the VDD_inv pin to 5 volts, connect 5 volts to the Input pin and use a

        multimeter to read the voltage at the output. Do you expect to read 0 volts?



    Test 2 - Now change the voltage at the input to 0 volts and read the output voltage, is it

        now at 5 volts?


    Test 3 - We just tested that when the input is 5 volts logical 'HIGH', the output is 'LOW'
        at 0 volts, and vice versa. But the transition between high and low is not instantanous. For
        this task, connect a second voltage supply to the input pin and vary it from 0 volts to 5
        in the smallest step size you can (1 mV, 10 mV, 100 mV) depending on your power supply.
        Find the switching point, V_sp, where the output voltage is the same as your input voltage.


61 stage ring oscillator

   * For this component you have access to the following pins:

            VDD_osc - The ring oscillator power supply (PIN 13)

            Osc_out - Output of the ring oscillator (PIN 12)

        The ground for the inverters in the oscillator are connected within the chip itself, to pin 20.



    Test 1 - Apply 5 volts to the VDD_osc pin and use an oscilloscope to measure the output of the

        ring oscillator at the Osc_out pin. You should see an imperfect square wave with a period

        of about 5 to 20 ns. measure the period of your square wave.


    Test 2 - Do the same procedure above but this time with the VDD_osc pin set to 4 volts and then
        once again to 6 volts. How do the three periods change as the input voltage for the ring
        oscillator goes lower or higher than 5 volts?


Resistors

    * For this stage of testing, we will use the same methods for all of the following four resistors.

        *20k n-well resistor        (left pin ->PIN19), (right pin -> PIN18)

        *20k hi-res poly resistor (left pin ->PIN19), (right pin -> PIN17)

        *1k n+ resistor  (left pin -> PIN11), (right pin -> PIN10)

        *1k p+ resistor  (right pin -> PIN8), (N-well -> PIN 9), (left pin -> PIN 10)



 Test 1 - Connect Pin19 to ground, we will first test out the 10k n-well resistor. Apply 5 volts to pin18

        and measure the current flowing into the resistor with a multimeter. Using V = I*R, calculate the

        resistance of the n-well resistor, it should be near 20k. Now remove the 5 volts and apply it to

        pin17. Measure the current once again and do the same calculation, V = I*R to verify that the

        20k hi-res poly resistor is near 20k as designed.



 Test 2 - Connect pin10 to ground and Pin9 to 5 volts (do not worry abou the N-well connection at this

        time). Apply 5 volts to Pin11 and measure the current flowing through that pin. Verify that the

        resistance is 1k for the n+ resistor. Now apply that 5 volts to pin8 and measure the current that

        flows through the resistor. Verify that the p+ resistor is also 1k.



Bandgap Reference

   * For this component you have access to the following pins:

        Vref - Voltage reference of 1.25 volts (PIN6)

        VDD_bg - voltage source for the bandgap (PIN7)



    Test 1 - Apply 5 volts to the VDD_bg pin to power up the bandgap. Now use a multimeter to

        measure the output of the bandgap from pin Vref. You should read very close to 1.25 volts.



    Test 2 - Now vary the voltage across the bandgap from 0 volts up to 6 volts in steps of 250

        mV. At which voltages does the bandgap give a good 1.25 volt reading? Does it function

        correctly when the VDD_bg source is below 3 volts?



4-bit Adder

    * For this component you have access to the following pins:

        VDD_adder - Voltage source for the adder (PIN33)

        Sum[0] - (PIN28)

        Sum[1] - (PIN29)

        Sum[2] - (PIN30)

        Sum[3] - (PIN31)

        Cout - (PIN34)

        Cin - (PIN35)

        B[0] - (PIN36)

        B[1] - (PIN37)

        B[2] - (PIN38)

        B[3] - (PIN39)

        A[0] - (PIN1)

        A[1] - (PIN2)

        A[2] - (PIN3)

        A[3] - (PIN4)



    Test 1- Connect 5 volts to VDD_adder pin, test out the 4-bit adder by inputting

        different combinations to the A[0:3] and B[0:3] pins. Use wires to tie each of

        these inputs to either gnd or the 5 volt power supply rail to provide logical

        "0" and "1". Read the result by using a multimeter and probing each output pin

        from Sum[0] to Sum[1] as well as carry out. Can you figure out which bit

        from the values A, B, and Sum is the most significant bit? Is it bit 0 or bit 3.



A copy of our jelib can be found here at the following link MOSIS_chip2.jelib



As always, create a backup just in case:
