Authored by Clayton Frister

Email: FristerC@unlv.nevada.edu

January 20, 2017



Fig 1.21

http://cmosedu.com/jbaker/courses/ee420L/s17/students/fristerc/Lab%201/1_21_Trans_Circuit.PNG http://cmosedu.com/jbaker/courses/ee420L/s17/students/fristerc/Lab%201/Lab1/1_21_VoltageSnip.PNG

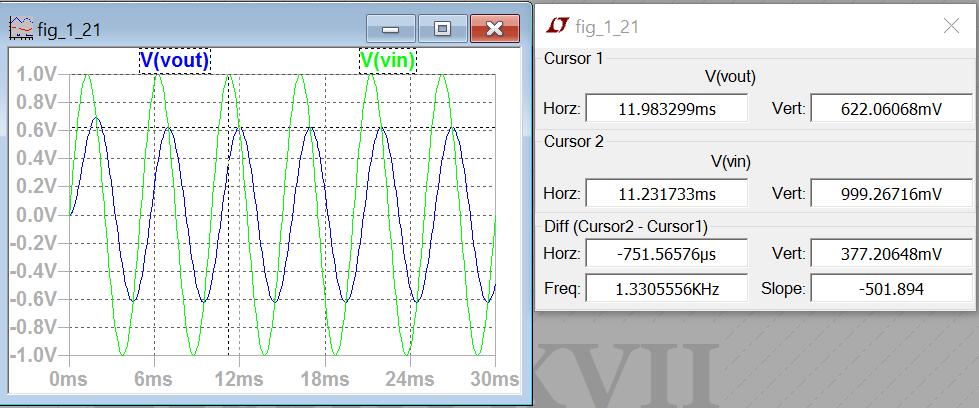

Circuit Schematic                        Tran analysis: Vin and Vout simulation.             Vout: 622mV        Vin: 999mV

 http://cmosedu.com/jbaker/courses/ee420L/s17/students/fristerc/Lab%201/Lab1/1_21%20Trans_Current.PNG

           Trans Sim of CircuitCcurrent                                     Current: 782uA

http://cmosedu.com/jbaker/courses/ee420L/s17/students/fristerc/Lab%201/1_21_AC%20Analysis%20Parameters%20Snip.PNG    http://cmosedu.com/jbaker/courses/ee420L/s17/students/fristerc/Lab%201/Lab1/1_21_PhaseSnip.PNG

                   AC Sim. Parameters                                        Phase Simulation                             Phase Angle:  -51.5 degrees

http://cmosedu.com/jbaker/courses/ee420L/s17/students/fristerc/Lab%201/Lab1/1_21%20hand%20calc.JPG

                               Hand Calculations Verifying Simulation Results

Fig 1.22

http://cmosedu.com/jbaker/courses/ee420L/s17/students/fristerc/Lab%201/Lab1/1_22%20Trans_Circuit.PNG    http://cmosedu.com/jbaker/courses/ee420L/s17/students/fristerc/Lab%201/Lab1/1_22%20Voltage%20Analysis.PNG

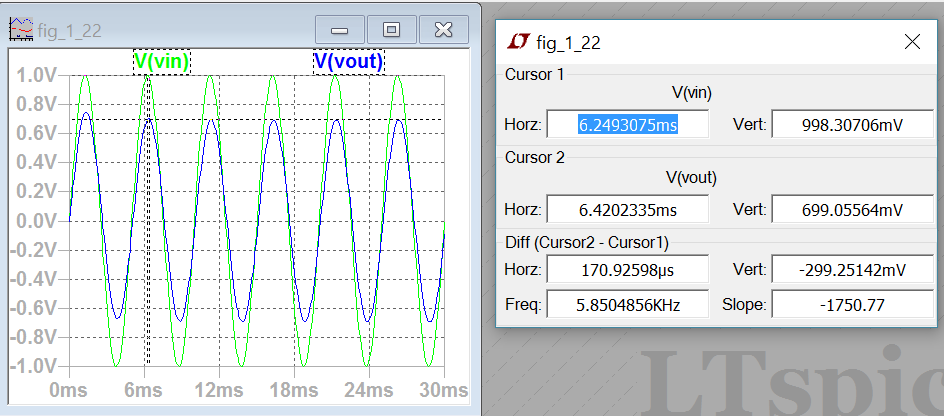

               Circuit Schematic                                Circuit Sim.                                    Vin: 998mV         Vout: 699mV

http://cmosedu.com/jbaker/courses/ee420L/s17/students/fristerc/Lab%201/Lab1/1_22%20Trans_Current.PNG

                   Current Sim.                                  Current: 871uA

http://cmosedu.com/jbaker/courses/ee420L/s17/students/fristerc/Lab%201/Lab1/1_22%20AC%20Analysis%20Parameters.PNG     http://cmosedu.com/jbaker/courses/ee420L/s17/students/fristerc/Lab%201/Lab1/1_22%20Phase%20Voltage.PNG

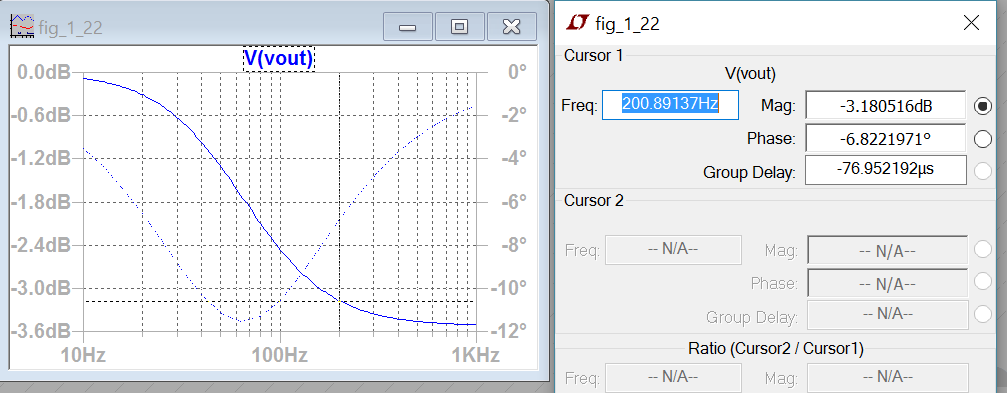

            AC Analysis Parameters                                    Phase Angle -6.822 Degrees

http://cmosedu.com/jbaker/courses/ee420L/s17/students/fristerc/Lab%201/Lab1/1_22%20Hand%20calc.JPG

                        Hand Calculations Verifying Simulation Results

Fig. 1.23

http://cmosedu.com/jbaker/courses/ee420L/s17/students/fristerc/Lab%201/1.23.JPG

Table 1.23

FreqMagnitude dbPhase dbTime Delay
20was not measurable on the scope-11.521.6mS
100-1.51 -34.56960uS
200-4.44-48.96680uS
1k-15.9-82.8230uS
10k-33.9-86.424uS
25k-44.43-728uS

Fig 1.24

http://cmosedu.com/jbaker/courses/ee420L/s17/students/fristerc/Lab%201/1.24.JPG
