Lab 1 - EE 420L

Author: Matthew Meza

Email: mezam11@unlv.nevada.edu

January 24, 2015



Review of basic RC circuits


Click on any picture for its full size!

 Pre-lab work
Lab Description
Lab Requirements

Circuit 1.21

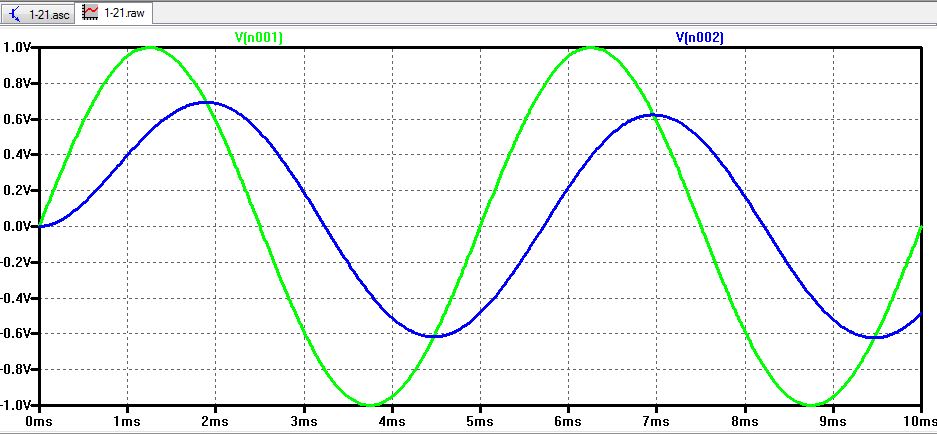

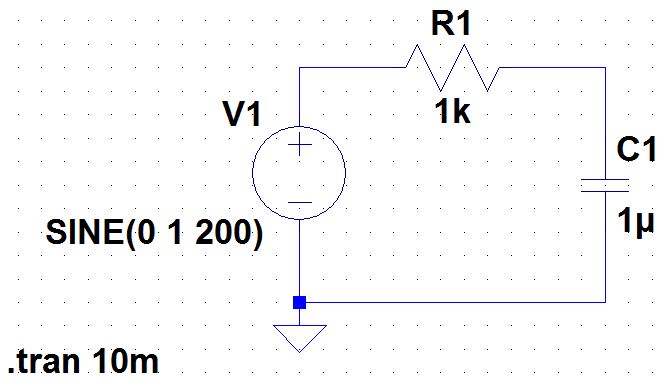

                            LTSPICE Schematic                                                                                   LTSPICE Plot



Cursor difference from signal peaks

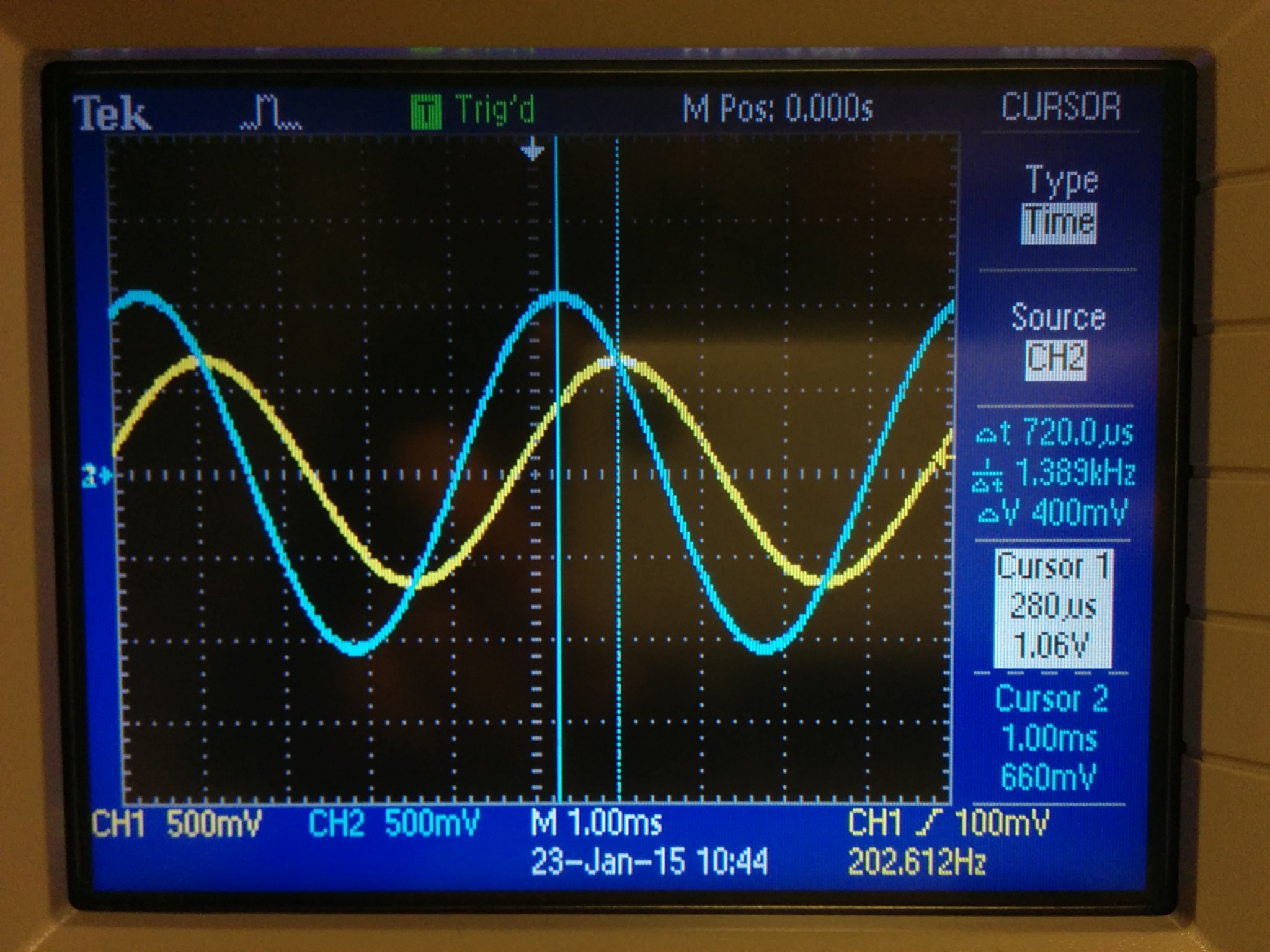

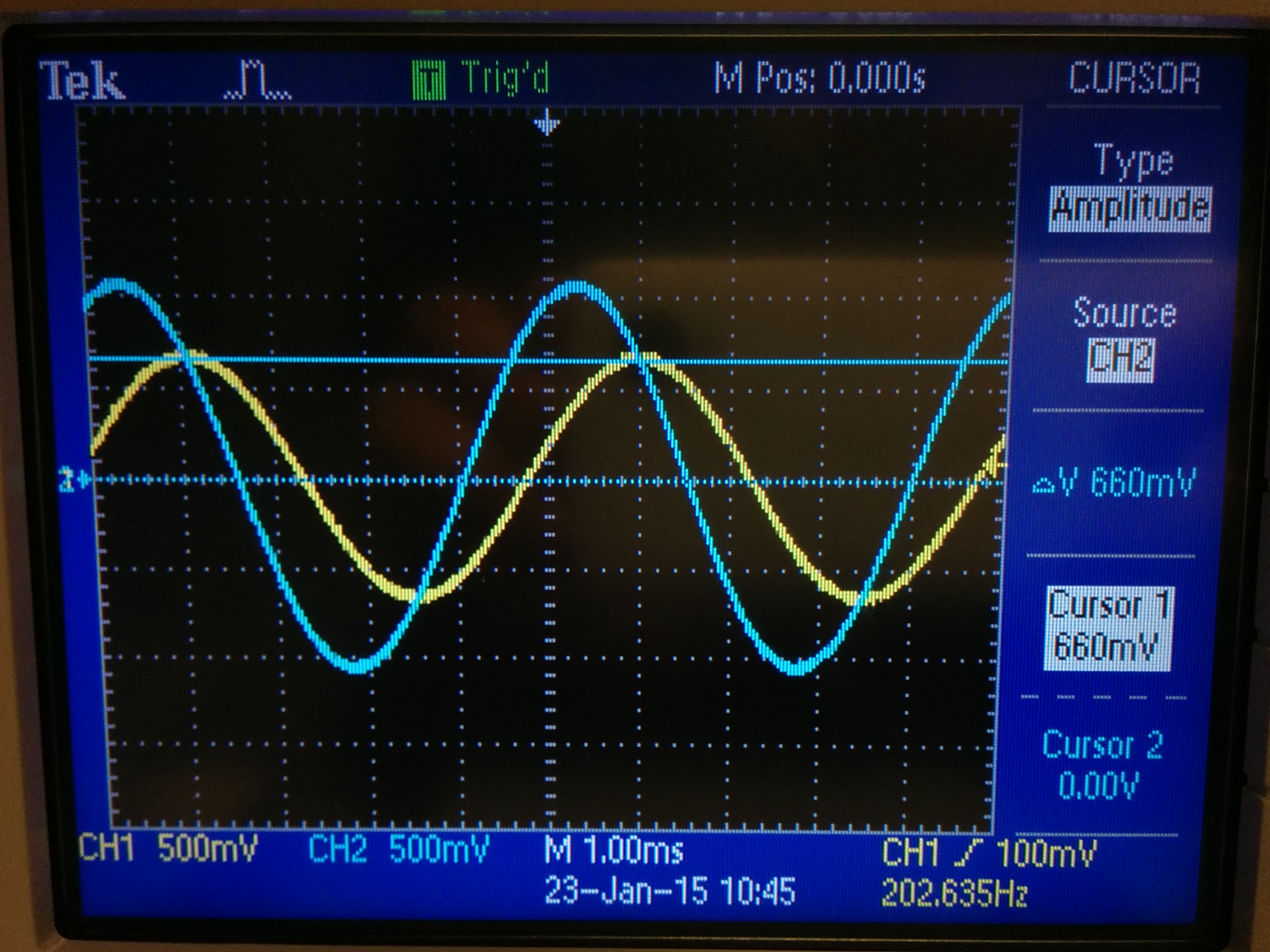

Experimental Results

                                Phase                                                                            Peaks




Handwork

Conclusion

PeakDelay
Experimental660 mV720 uS
LTspice693 mV669 uS
Handwork623 mV715 uS
The deviation between experimental, LTspice, and handwork values are acceptable for this experiment.


Circuit 1.22

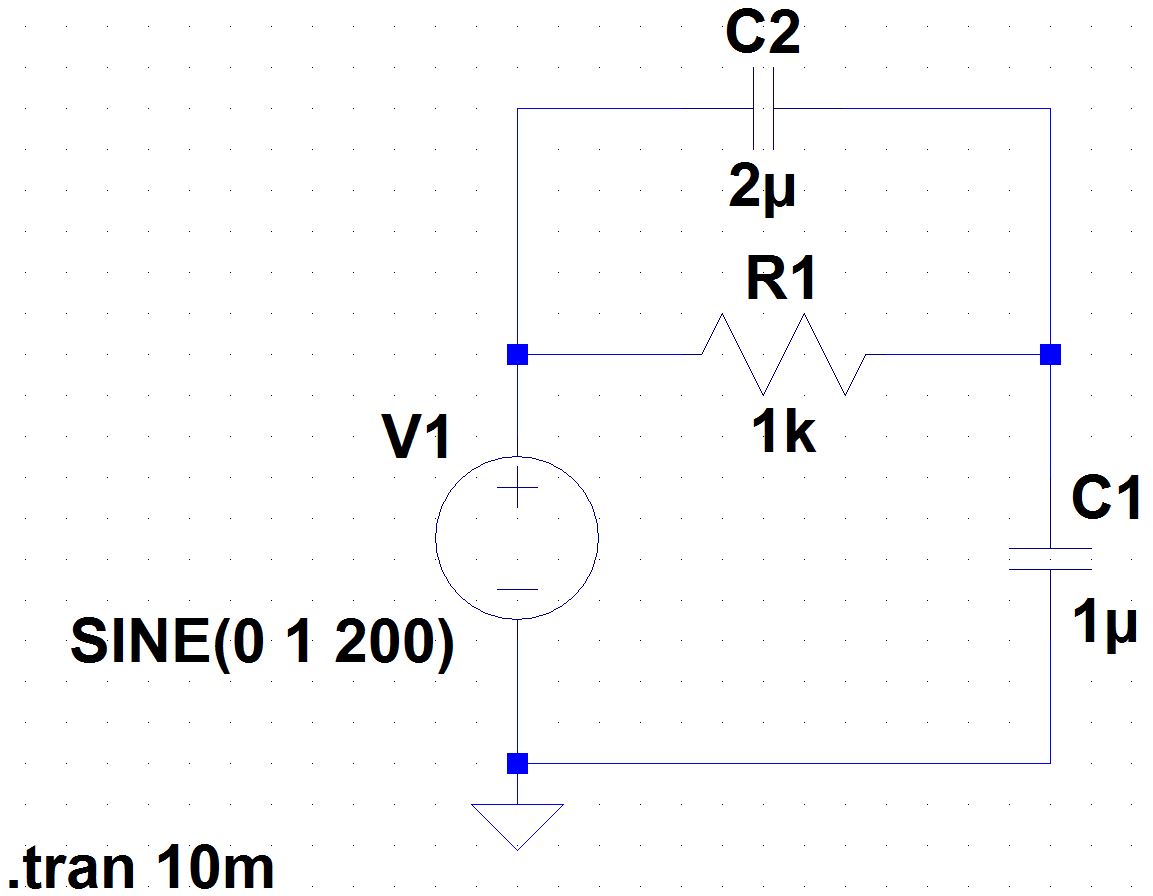

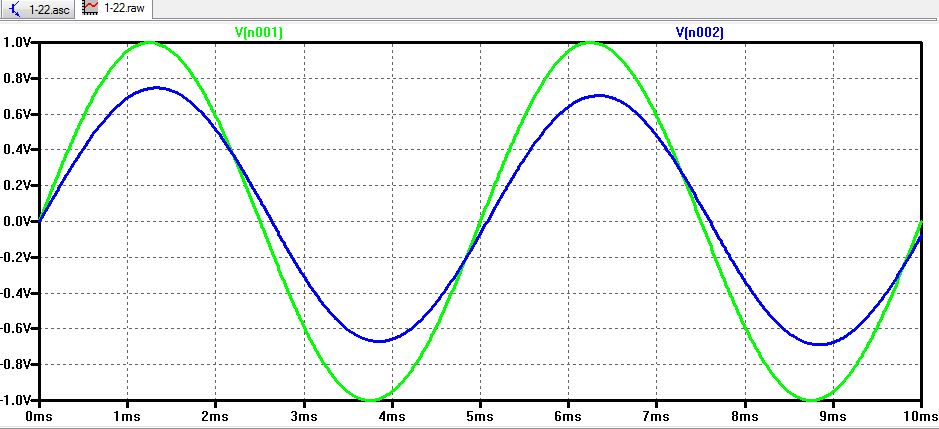

                            LTSPICE Schematic                                                                                   LTSPICE Plot



Cursor difference from signal peaks

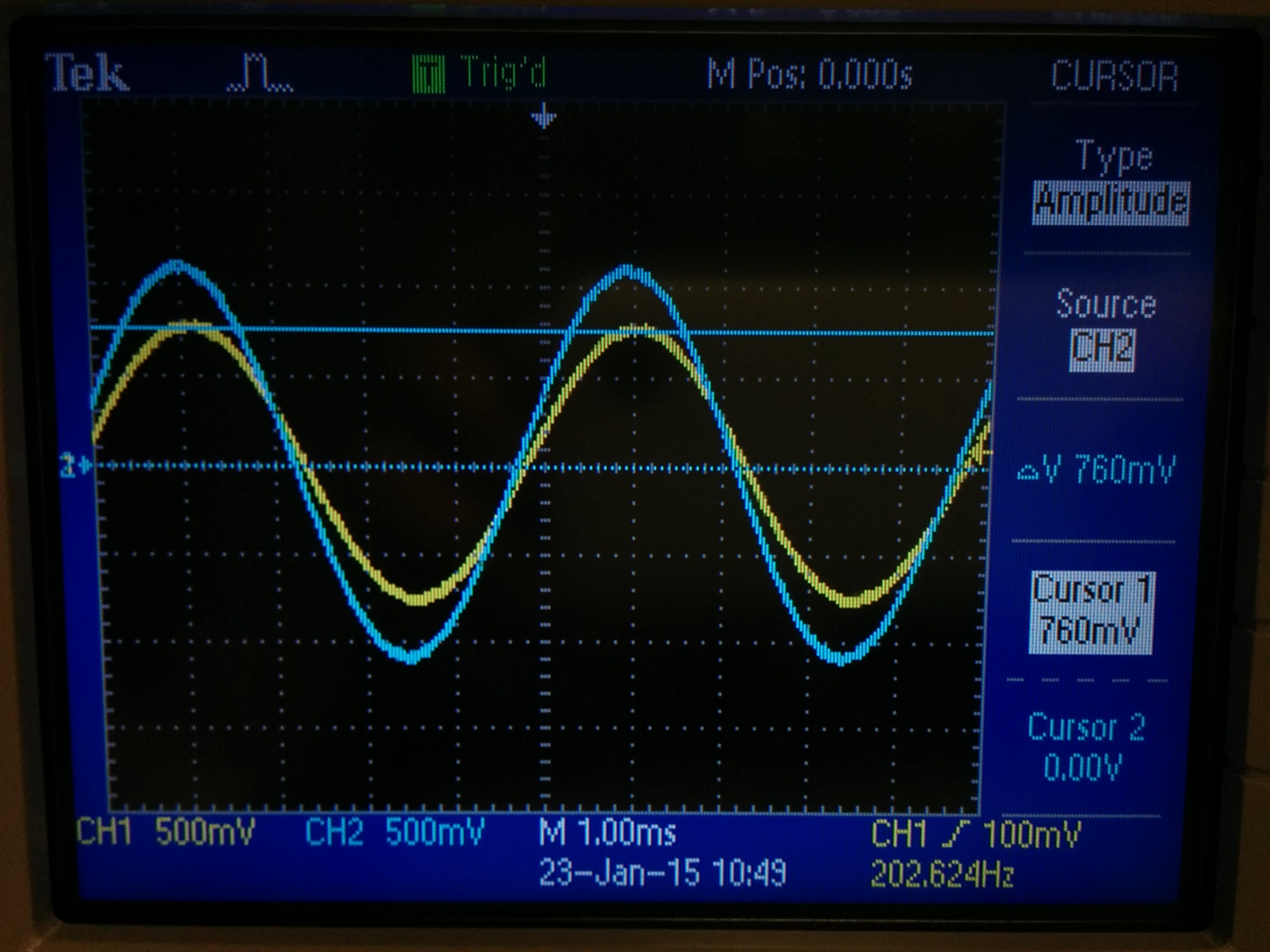

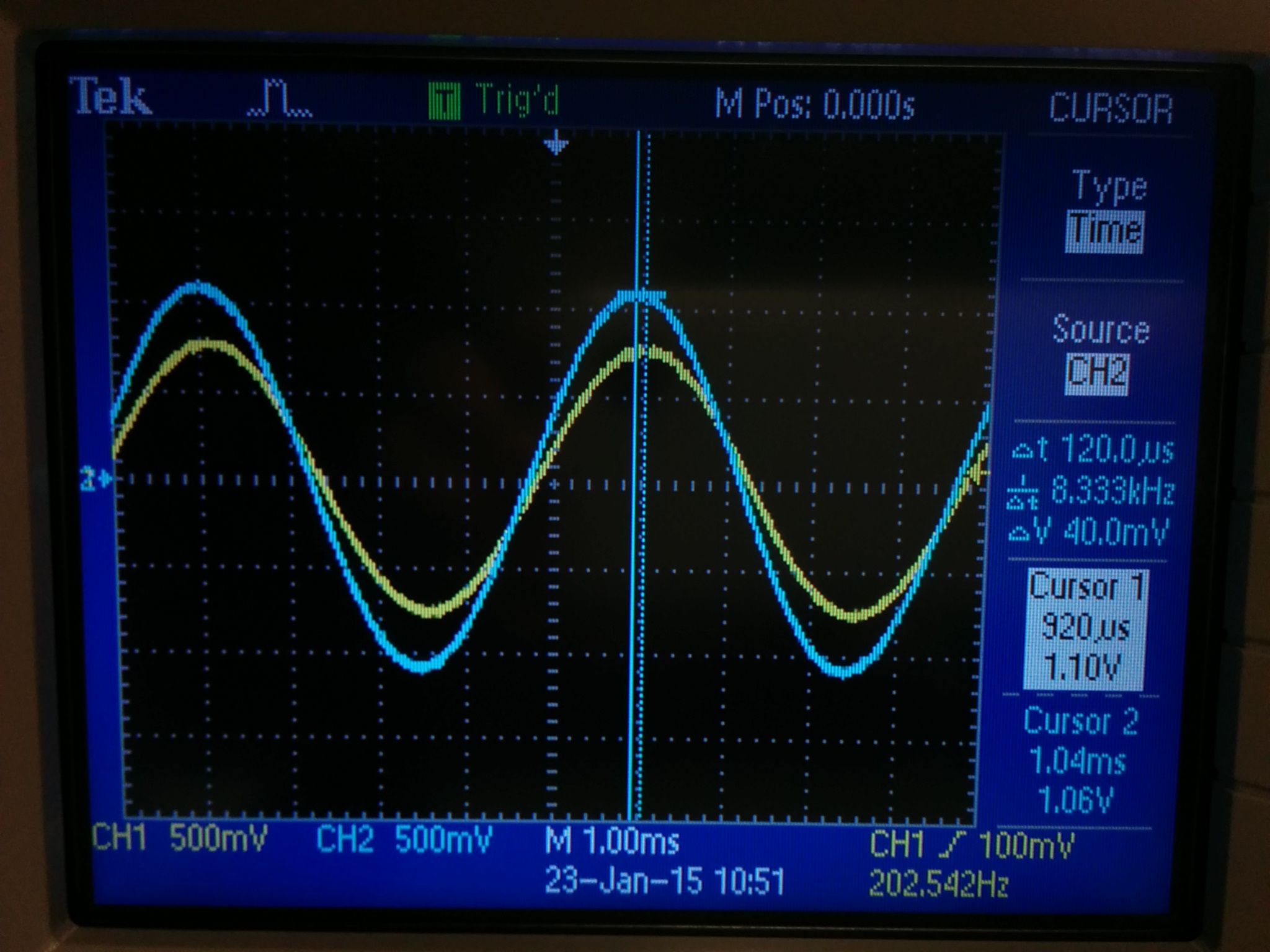

Experimental Results

                                Peaks                                                                            Phase

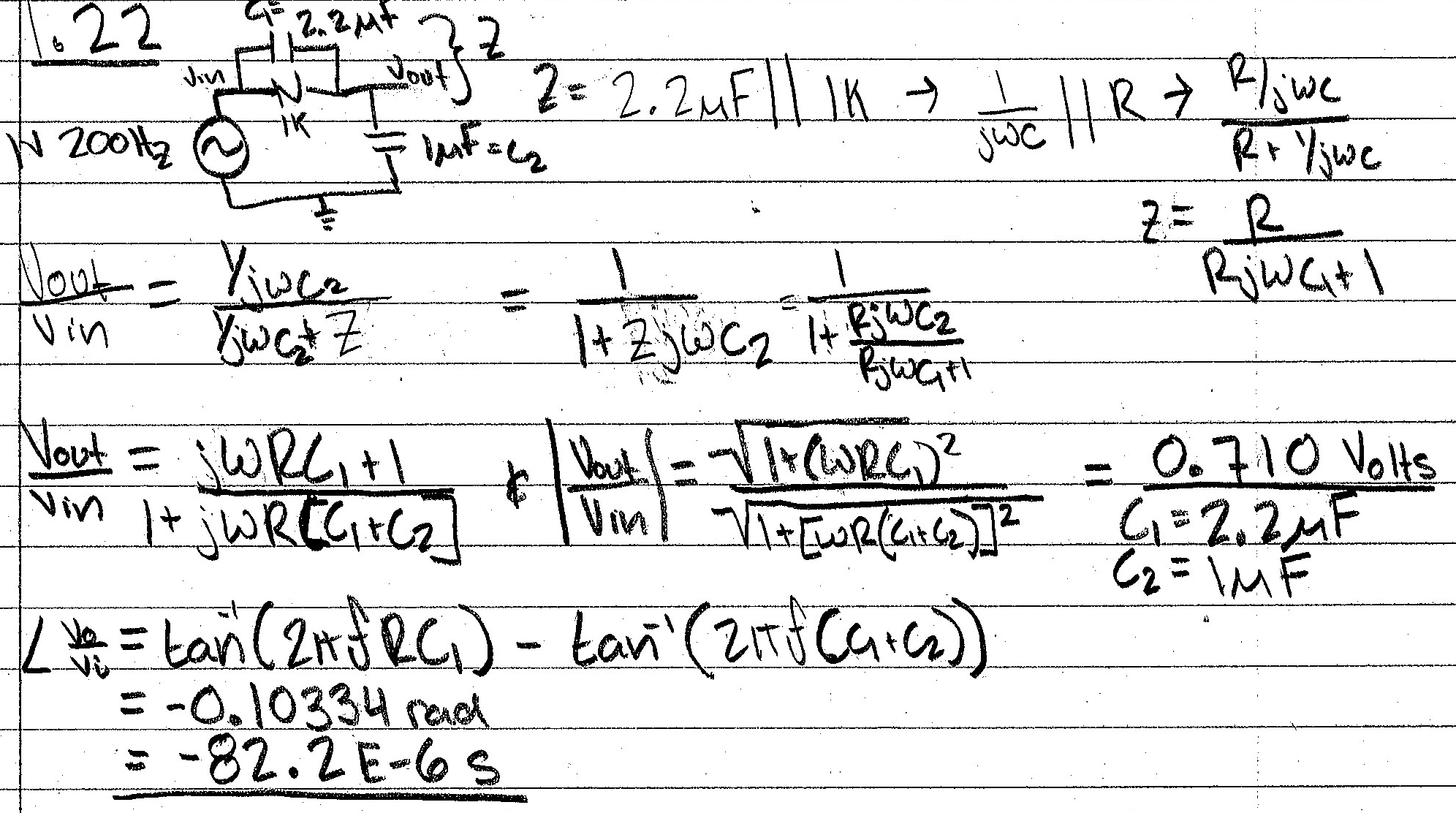

Handwork


Conclusion

PeakPhase
Experimental (2.2uF)760 mV120 uS
LTspice (2uF)744 mV91.5 uS
Hand Calculation (2.2uF)710 mV82.2 uS
The original circuit uses a 2uF capacitor but the capacitor used in the experimental test was 2.2uF. The 2.2uF
value was used in the hand calcuations shown above. The deviation between experimental, LTspice, and handwork
values are acceptable for this experiment.


Circuit 1.24

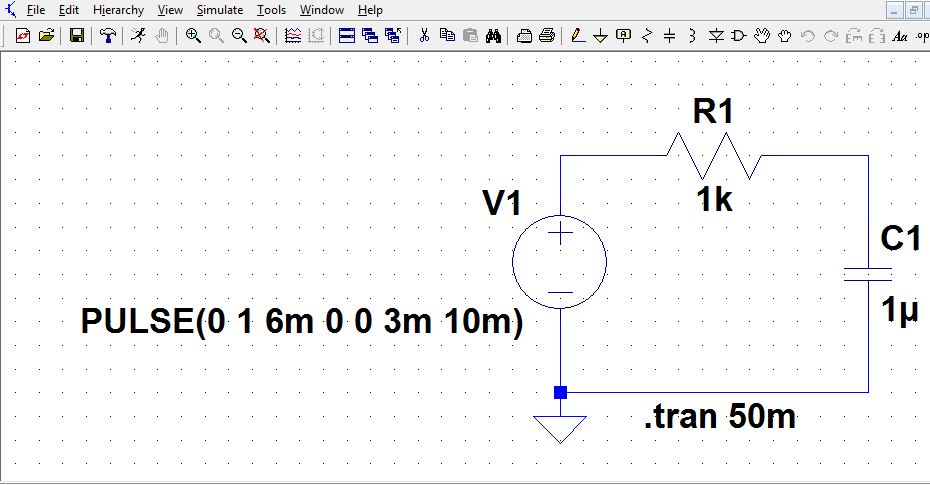

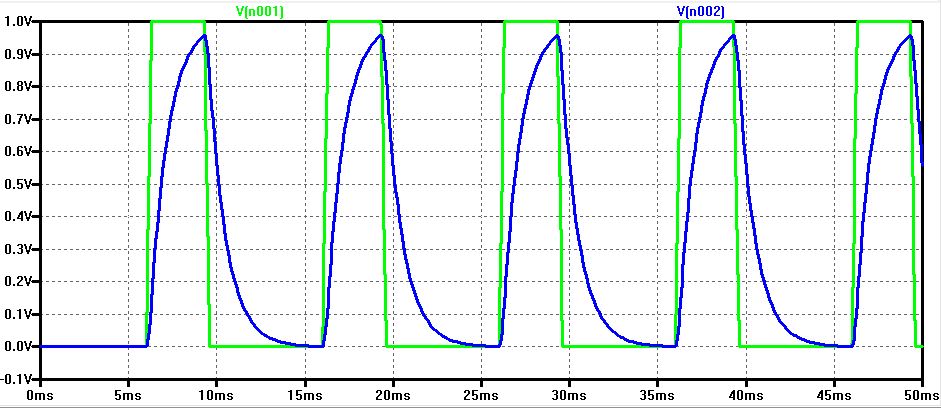

                            LTSPICE Schematic                                                                                   LTSPICE Plot



Cursor difference from signal peaks

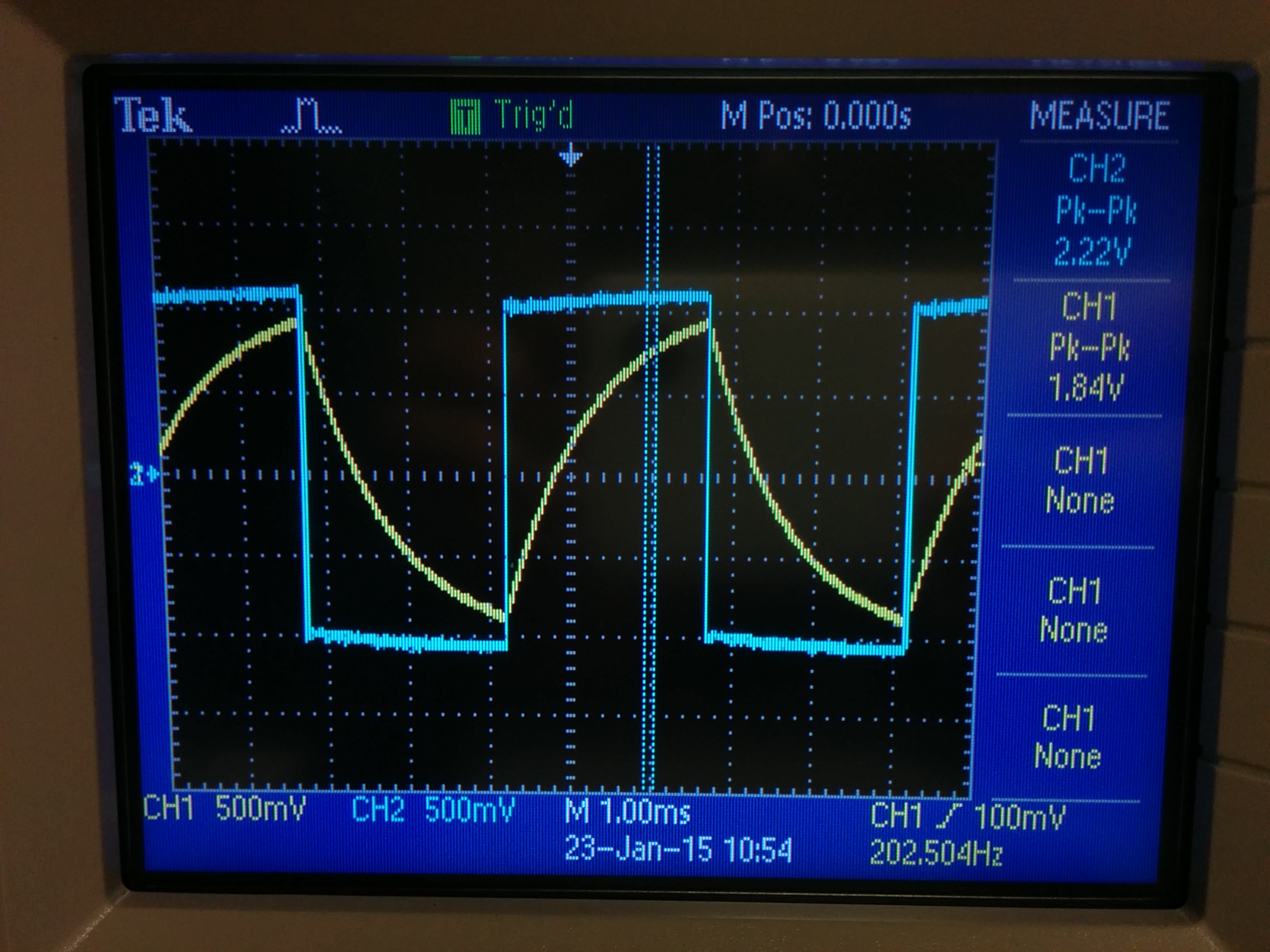

Experimental Results

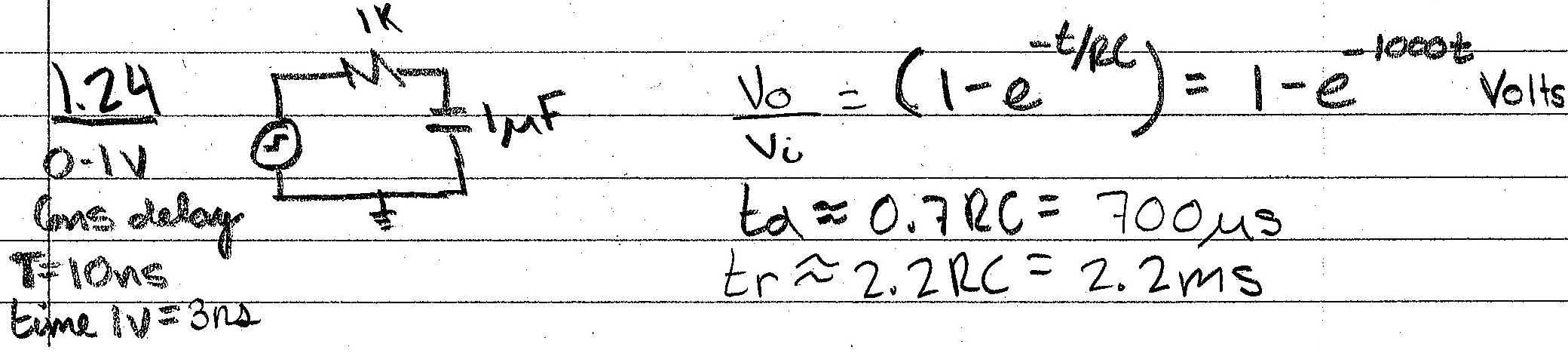

Handwritten work


Conclusion
The rise time in the hand calculation is 2.2ms, while the rise time from the LTspice simulation is 2.6ms (0.8*3.28ms). I multiplied my
experimental rise time by 0.8 because the measurement was taken from the minimum to the maximum instead of the standard 10-90 rule
used for measuring experimental rise times.
